TrendNet TEW-730APO 9 dBi Outdoor PoE Access Point
HomeStore

TrendNet TEW-730APO 9 dBi Outdoor PoE Access Point

TrendNet TEW-730APO 9 dBi Outdoor PoE Access Point

TEW-730APO (Version v1.0R)

  • Wireless N300 building-to-building networking (2.4 GHz)
  • Fat AP, Thin AP, Virtual Access Control (AC), and Virtual AC + Thin AP modes
  • Fat AP supports AP, WDS Bridge, WDS Repeater, Client, and CPE + AP modes
  • Built-in 9 dBi directional antenna
  • IP55 rated housing
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1X
  • IEEE 802.11f
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300 Mbps)
Hardware Interface
  • 1 x 10/100 Mbps (proprietary PoE) port**
  • Reset button
  • LED indicators
  • Grounding point
Special Features
  • IP55 weather rated
  • 802.1Q VLAN assignment per SSID
Access Control
  • Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
  • Firewall (CPE Mode): NAT, Port Forwarding, DMZ Host
  • Access Controls: MAC, IP Filter, Port Filter, Per-SSID client limiting
  • 802.1Q VLAN
QoS
  • WMM
  • Traffic Shaping
Operation Modes
  • Fat AP
  • Thin AP
  • Virtual AC
  • Virtual AC + Thin AP
FAT AP Modes
  • Access Point (AP)
  • Client (Client + AP)
  • CPE (Client + Bridge)
  • WDS Bridge
  • WDS Repeater
SSID
  • Up to 8 SSIDs
Internet Connection Types (CPE mode)
  • Dynamic IP (DHCP)
  • Static IP (Fixed)
  • PPPoE (Dynamic IP)
Management/Monitoring
  • Local/remote web based management (HTTP, HTTPS)
  • Local/remote CLI based management (Telnet, SSH)
  • SNMP v2/v3
  • CPE Management
  • Upgrade firmware
  • Backup/restore configuration
  • Event logging
  • Syslog
  • Reboot
  • Restore to factory defaults
  • Ping test
  • Ping Watchdog
  • Trace Route
  • STP
  • STP forward delay
  • Traffic Shaping
  • MAC based access control
Frequency
  • FCC: 2.412 – 2.462 GHz
  • ETSI: 2.412 – 2.472 GHz
Wireless Channels
  • FCC: 1 – 11
  • ETSI: 1 – 13
Modulation
  • 802.11b: DBPK, DQPSK, CCK with DSSS
  • 802.11g/n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
  • 9 dBi internal directional antenna
Wireless Output Power/Receiving Sensitivity
  • 802.11b: FCC/ETSI: FCC: 24 dBm (max.), ETSI: 11 dBm (max.)/ -85 dBm (typical) @ 11 Mbps
  • 802.11g: FCC/ETSI: FCC: 22 dBm (max.), ETSI: 11 dBm (max.)/ -70 dBm (typical) @ 54 Mbps
  • 802.11n: FCC/ETSI: FCC: 20.5 dBm (max.), ETSI: 9 dBm (max.)/ -62 dBm (typical) @ 300 Mbps
EIRP
  • FCC: up to 33 dBm (with built in 9 dBi antenna)
  • ETSI: up to 20 dBm (with built in 9 dBi antenna)
Power
  • Input: 100 – 220 V, 50 – 60 Hz, 0.6 A
  • Output: 24 V / 1 A Consumption: 12 Watts Max.
Operating Temperature
  • -20 – 70° C (-4 – 158° F)
Operating Humidity
  • Max. 95 % non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 205 x 64 x 61 mm (8.1 x 2.5 x 2.4 in.)
Weight
  • 0.8 kg (1.8 lbs.)
Warranty
  • 3 year limited
PACKAGE CONTENTS
  • TEW-730APO
  • CD-ROM (User's Guide)
  • Quick Installation Guide
  • Poll mounting hardware
  • Proprietary PoE injector (24 V, 1 A)
  • Power Cord
  • Grounding wire
$33.00

Original: $110.00

-70%
TrendNet TEW-730APO 9 dBi Outdoor PoE Access Point—

$110.00

$33.00

More Images

TrendNet TEW-730APO 9 dBi Outdoor PoE Access Point - Image 2
TrendNet TEW-730APO 9 dBi Outdoor PoE Access Point - Image 3

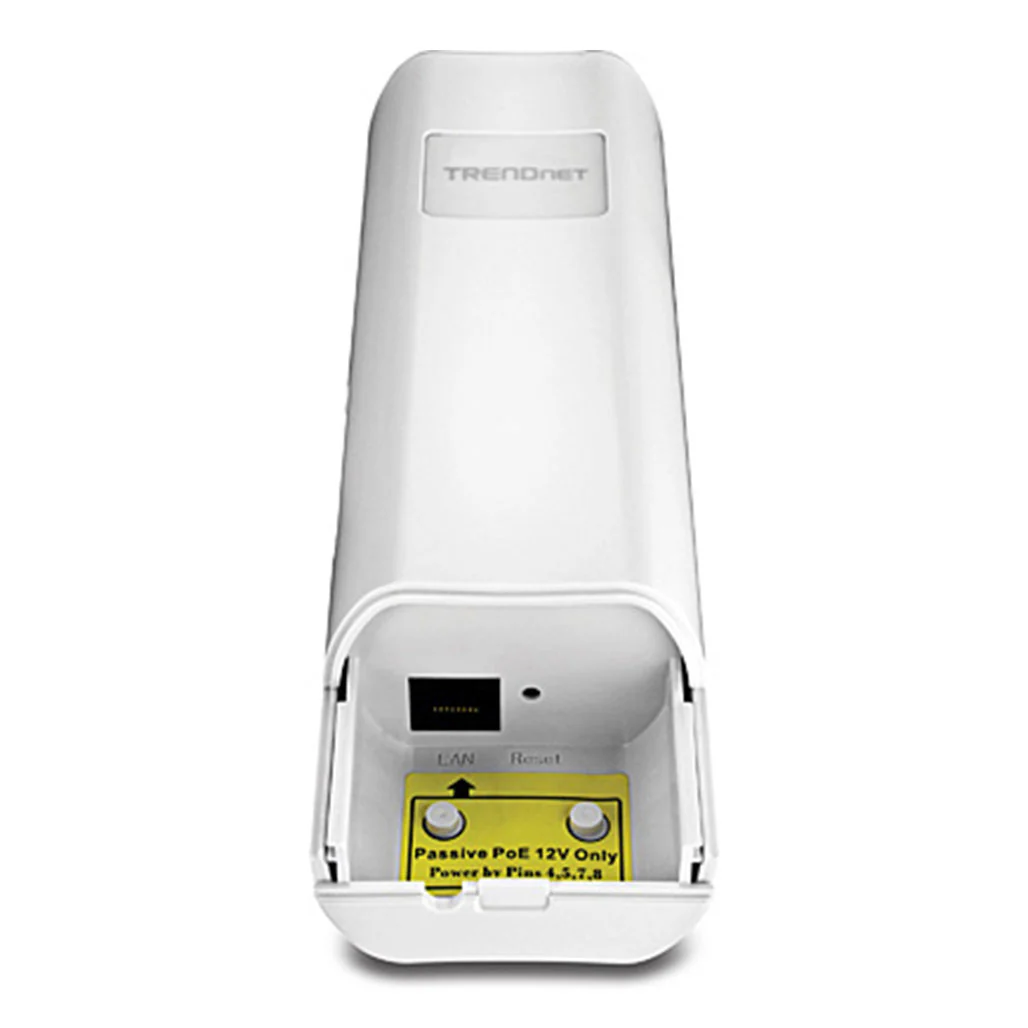

TrendNet TEW-730APO 9 dBi Outdoor PoE Access Point - Image 4
